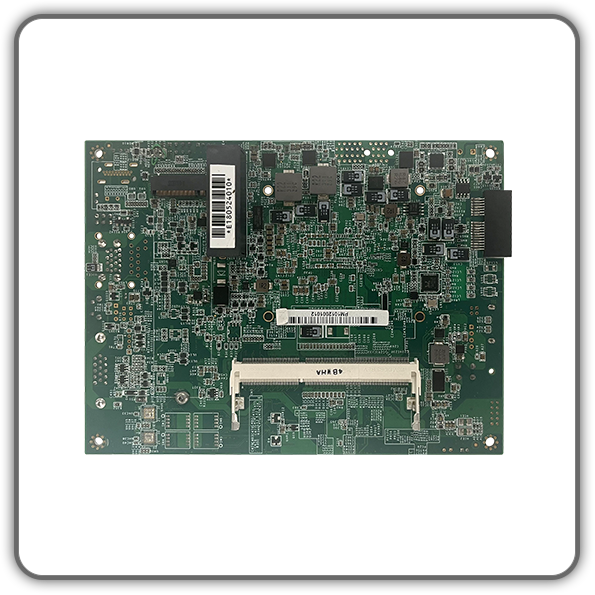

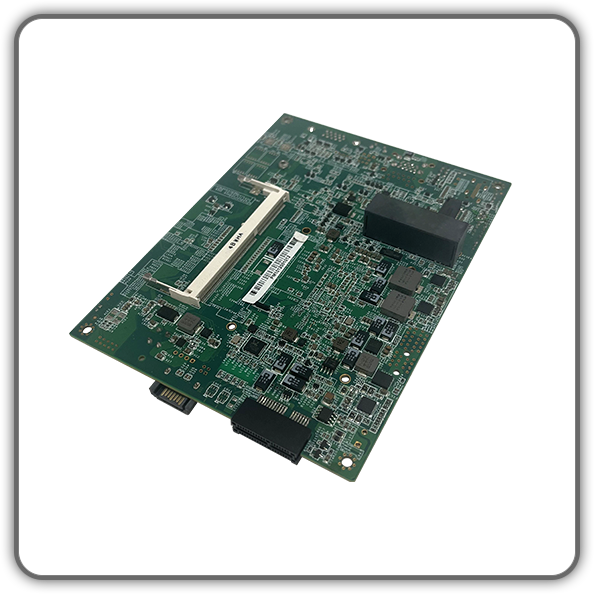

ERUN-D3955
应用：工业控制
Intel® 6rd Generation Core™ i7/i5/i3/Celeron 6600U/6300U/6100U/3955U
SODIMM DDR3l 1600, Max. 16 GB
Gigabit Ethernet x 2,
VGA, 18/24-bit Dual-Channel LVDS LCD x
SATA x 1, m.2 x 1 ,USB3.0 x 2, USB2.0 x 6, COM x 4
+12V Only Operation
PCIEX4 x1
应用：工业控制
Intel® 6rd Generation Core™ i7/i5/i3/Celeron 6600U/6300U/6100U/3955U
SODIMM DDR3l 1600, Max. 16 GB
Gigabit Ethernet x 2,
VGA, 18/24-bit Dual-Channel LVDS LCD x
SATA x 1, m.2 x 1 ,USB3.0 x 2, USB2.0 x 6, COM x 4
+12V Only Operation
PCIEX4 x1
1. Intel® 6rd Generation Core™ i7/i5/i3/Celeron 6600U/6300U/6100U/3955U SODIMM DDR3l 1600, Max. 16 GB
2. Gigabit Ethernet x 2,
3. VGA, 18/24-bit Dual-Channel LVDS LCD x
4. SATA x 1, m.2 x 1
5. USB3.0 x 2, USB2.0 x 6, COM x 4
6. +12V Only Operation
7. PCIEX4 x1
Processor Intel® 6rd Generation Core™ i7/i5/i3/Celeron 6600U/6300U/6100U/3955U Chipset 6600U/6300U/6100U/3955U Memory 204-pin DDR3L SODIMM x2 Bios INSYDE 2.O Display Integrated in Intel® 3955U processor DB-15 VGA port resolution up to 2048 x 1536 EDP LVDS I/O SATA 6.0Gb/s x1, ,RS-232 x 1, RS-232/422/485 x4, ,USB3.0 x 2, USB2.0 x 4,PCIE x 4*1, LANx1 Ethernet Realtek RTL-8111Ex2,Two 10/100/1000Base-T ports Audio ALC892 ,Line-in and Line-out Mic-in, Speaker-out GPIO 8-bit general purpose input,output Expansion support PCIEX4 SATA SATA OS WIN 10/Linux Power Requirement AT/ATX 2-pin +12V Board Size 210x120mm Operating Temp. A ：0℃～+60℃ B：-20℃～+70℃ Storage Temp. -40°C ~ 85°C
